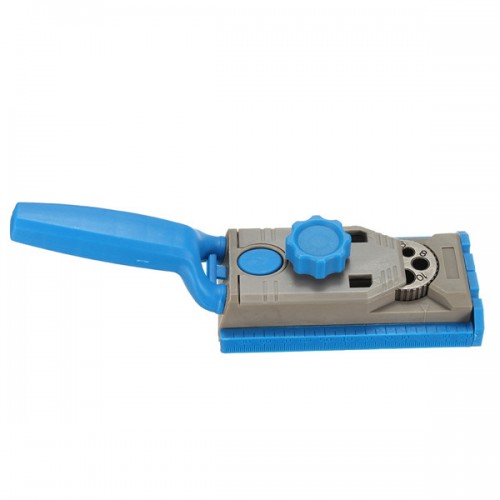

Round Wood Tenon Locator Drilling Positioner Drill Hole Woodworking Tool
- Product Code: fgd179
- Availability: In Stock
- $31.39
- Ex Tax: $31.39
Product Description
Description:

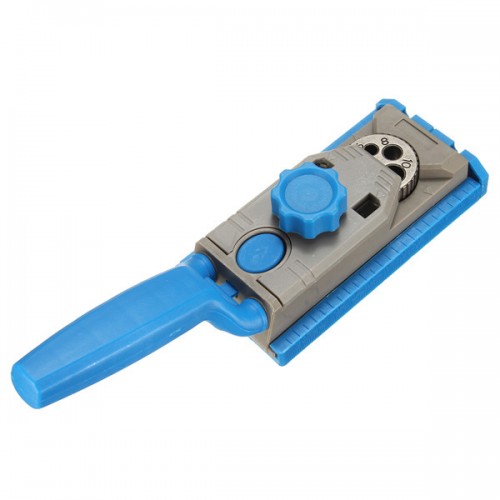

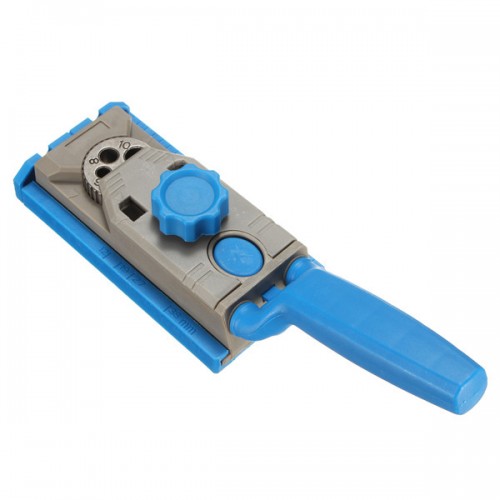

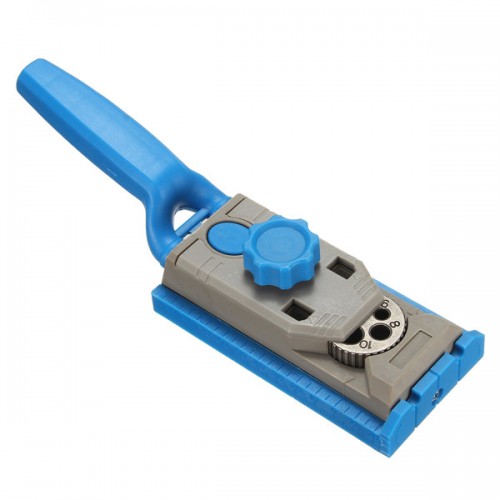

Multi-purpose simple drilling positioner, can be drilling straight holes and oblique holes for accurate positioning, design is reasonable, flexible use, have scale marking, easy to adjust, with wooden tenon hole, vertical drilling function, is ideal tool for plate furniture.
Specifications:
Clamp material: powder metallurgy
Scaffold material: Polypropylene plastic

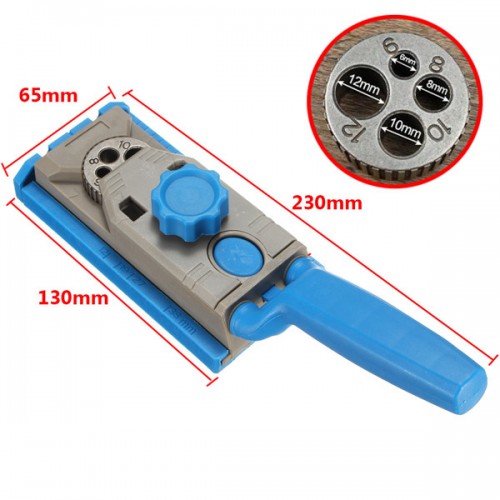

Drill sleeve size: 6/8/10/12mm
Total length: 230mm
Width: 65mm
Quantity: 1pc
Features:

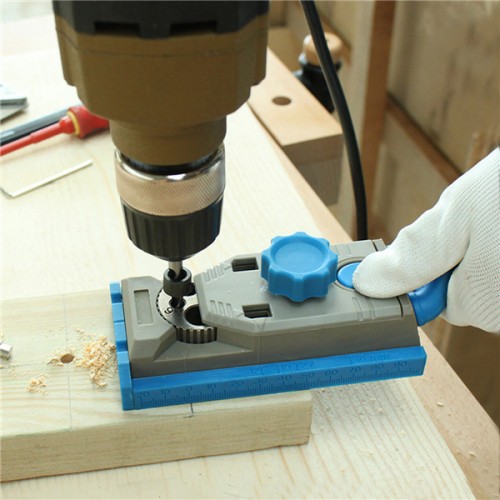

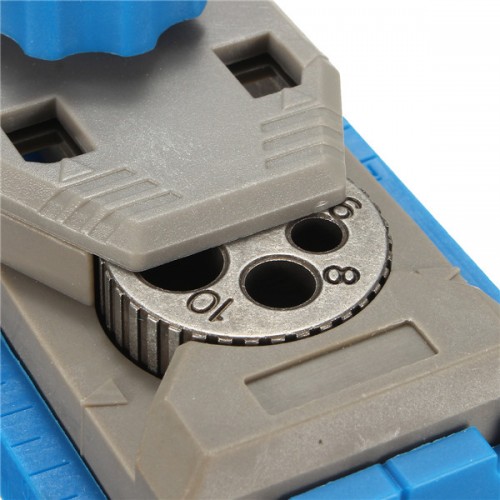

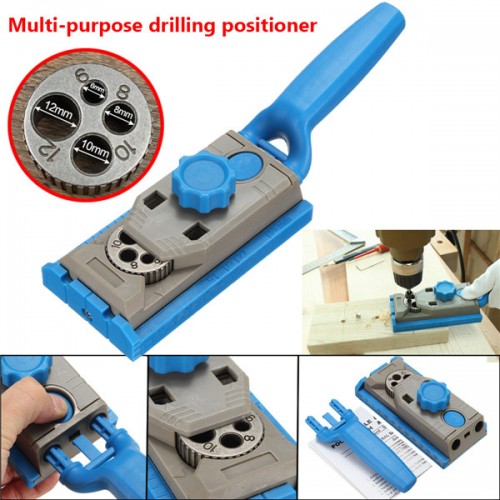

1.Rotary style straight hole drilling sleeve specifications are 6/8/10/12mm,
loosen the upper cover lock screw, turn the drill sleeve can be; oblique drill bit diameter 9.5mm (3/8").
2.Scale line, easy to adjust, punch positioning accuracy.
3.Board thickness, base identification 12/19/27/38mm indicates the thickness of the board,
when aligning the slope, align the two lines (green frame) according to the thickness of the board.

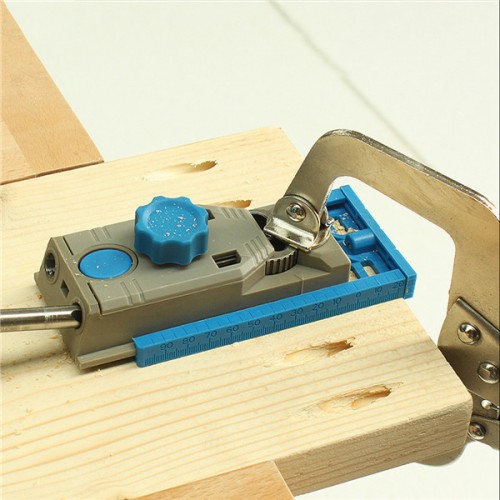

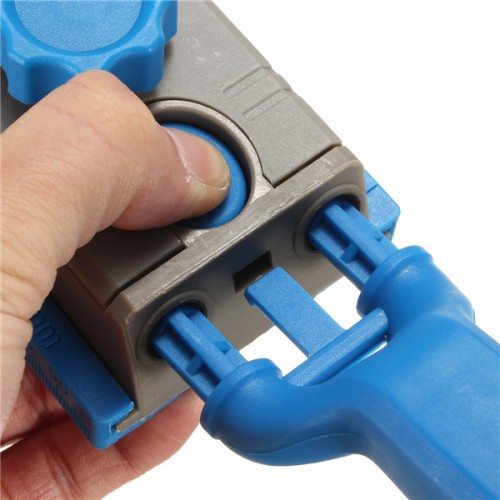

4.Limit plate–Rotate the limit plate, it can be turned to stuck the edge of the board, drilling more stable;
rotating screws, sliding the base, can adjust the thickness of the slanting board.

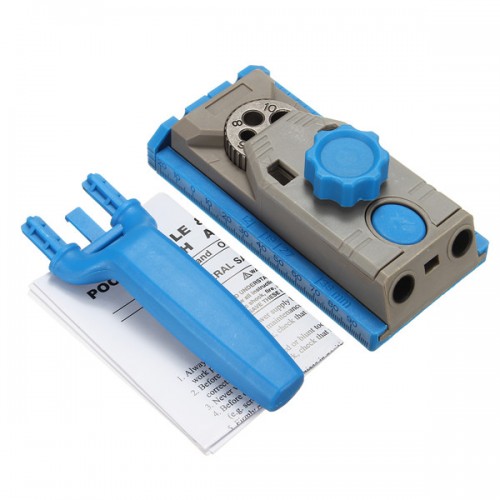

Package Included:
1pc x drilling positioner
Notice:
1.Please allow a bit error due to manual measurement. please make sure you do not mind before you bid.
2.The color may have different as the difference display, pls understand.
